Products Description

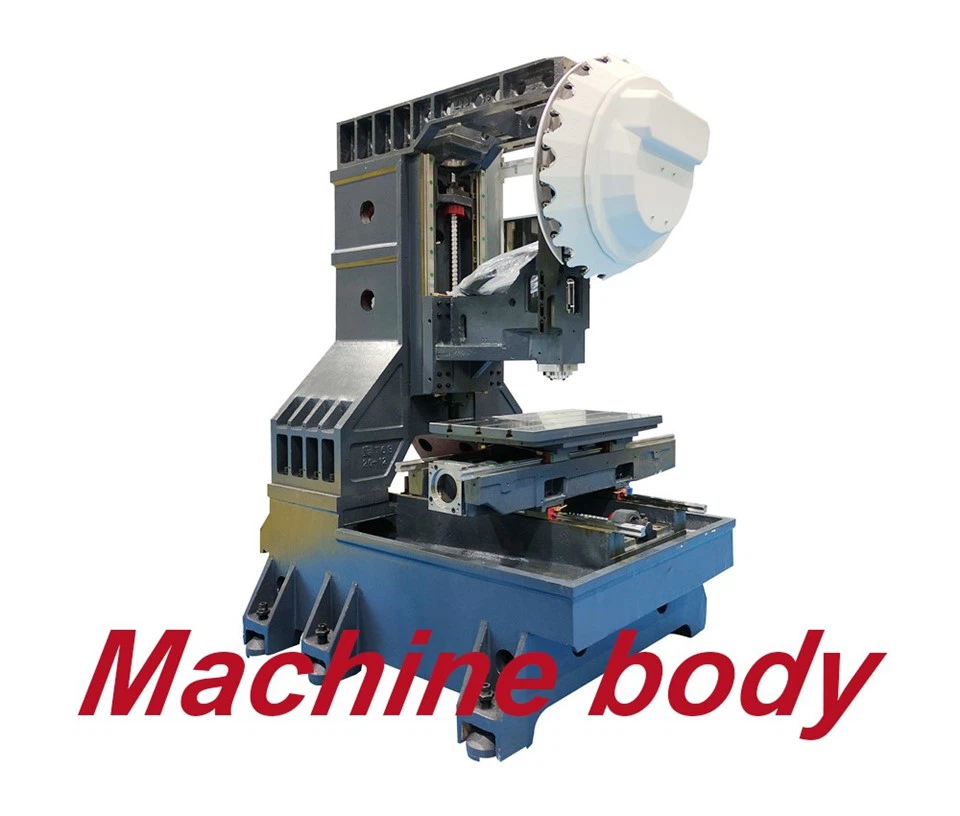

The DY-T700 is a high-speed drilling and tapping machine. It is highly praised among manufacturing customers for its 1.3-second tool change time and stable operation. Meanwhile, the roller slider and the tool change speed of 48mm/s for each axis ensure the high-speed and stable operation of your machine during cutting. The machine adopts high-quality castings from Yunnan, and its operation remains as stable as ever during long-term use.
Mechanical Performance
- 1.3-second ultra-fast tool change.
- Spindle air blowing to prevent metal chips from affecting spindle accuracy.
- Rigid tapping. Maximum drilling size can reach 12cm.
- X/Y/Z axis. Fast shift speed: 48mm/s.
- Spindle motor power: 3.7kw (Matching system)
(Long-term processing with excessive power may cause machine damage. If there is a need to replace the motor, please contact the business party.)
Product iteration
In 2026, Kunshan Duyang, in response to customer requests, launched a larger stroke, heavier cast iron bed, and more compact sheet metal design to assist manufacturers in the AI and liquid cooling industries as a way to thank their customers.
Optional top configuration
- Rear-mounted chip conveyor
- Oil cooler
- Fourth axis /DD direct drive five-axis rotary table
- Security door lock
- Higher-level control system; Fanuc 0i-mf type1/ Mitsubishi M80A
DY-T700 Technical Parameter
|
ITEMS |
UNIT |
PARAMETER |
||
|
WORKTABLE |
||||
|
Table size |
mm |
780×420 |
||
|
T slot(number-width-pitch) |
mm |
3-14×120 |
||
|
Max.worktable load |
kg |
250 |
||
|
AXIS TRAVEL |
||||
|
X/Y/Z axis trave |
mm |
700/400/350 |
||
|
Distance from spindle nose to worktable surface |
mm |
120-470 |
||
|
Distance from spindle axis to Column surface |
mm |
420 |
||
|
SPINDLE |
||||
|
Taper and specificationof main shaft |
BT30-Φ100 |
|||
|
Max.spindle speed |
rpm |
20000/24000 |
||
|
Spindle connection style |
Direct-connection |
|||
|
Spindle power |
KW |
3.7 |
||
|
TOOL MAGAZINE |
||||
|
ATC system |
||||
|
Tool magazine capacity |
pcs |
21 |
||
|
Tool shank type |
BT30 |
|||
|
Max tool weight |
kg |
3 |
||
|
Max tool length |
mm |
250 |
||
|
Time of tool change (T-T) |
s |
1.5 |
||
|
Max tool diameter (w/o adjacent tools) |
mm |
Φ100 |
||
|
FEEDRATE |
||||
|
Max. displacement speed(X/Y/Z) |
m/Min |
48/48/48 |
||
DY-T700 Technical Parameter
|
ITEMS |
UNIT |
PARAMETER |
|
ACCURACY |
||
|
X/Y/Z axis positioning accuracy |
mm |
0.005 |
|
X/Y/Z axis repeatability accuracy |
mm |
0.005 |
|
MACHINE SIZE |
||
|
Machine size(L×W×H) |
mm |
1900×2640×2140 |
|
PACKAGE SIZE |
||
|
Package size |
mm |
2000×2800×2300 |
|
MACHINE WEIGHT |
||
|
Net weight / Gross weight |
kg |
3000 / 3500 |
